Product Description

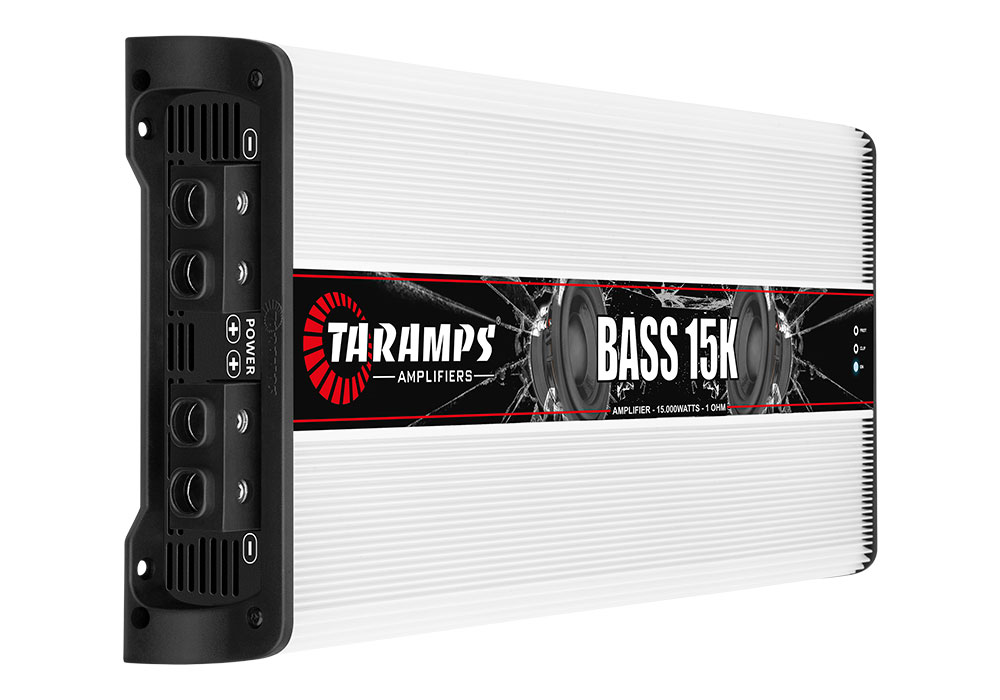

The BASS 15K amplifier module is carefully developed with the highest technology, high performance and performance for automotive sound systems focused on subwoofer and bass response. It has a maximum power of 15,000W in 1 channel of 1 OHM and frequency responses in the range of 8Hz to 250Hz, with customized adjustments according to the size of the luggage carrier and the frequency of greater prominence of each vehicle, through BASS BOOST and choice of center frequency, this product can offer much more, excessive displacement control, through SUBSONIC FILTER, volume control and LOW PASS, to leave your bass to the right measure.
TECHNICAL INFORMATION
- CLASS OF OPERATION Class D
- NUMBER OF CHANNELS 01
- MAXIMUM POWER @ 14.4 VDC - 1 OHM: 15000 W RMS @ 14.4 VDC - 2 OHMS: 8505 W RMS
- INPUT SENSITIVITY 280mV
- SIGNAL / NOISE RATIO> 95dB
- FREQUENCY RESPONSE (-3dB) 8Hz to 250Hz
- CROSSOVER HIGH PASS (HPF) Variable, 8 to 30Hz (-12dB / 8th)
- CROSSOVER LOW PASS (LPF) Variable, 60 to 250Hz (-12dB / 8th)
- BASS BOOST Parametric, (35 to 60Hz) 0 to + 12dB
- EFFICIENCY 80%
- INPUT IMPEDANCE 22K Ohms
- PROTECTION SYSTEM Short on Output / Short on Output in relation to GND / High and Low Supply
- Low Impedance and Thermal Protection
- MINIMUM POWER SUPPLY VOLTAGE 9VDC
- POWER SUPPLY VOLTAGE 17VDC
- CONSUMPTION AT REST 400mA
- MAXIMUM MUSICAL CONSUMPTION 651A
- MAXIMUM CONSUMPTION IN SENOIDAL SIGNAL 1302A
- DIMENSIONS (LXAXP) 238 x 71 x 544 mm
- WEIGHT 9.70Kg
