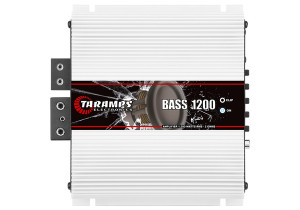

Taramps BASS 1200.1 Amplifier - 1 Ohm
Taramps
$199.00
(No reviews yet)
Write a Review
Taramps
Taramps BASS 1200.1 Amplifier - 1 Ohm
The BASS 1200 Amplifier Module is carefully developed with state-of-the-art technology, offering unique efficiency and performance for automotive audio systems. Intended for sub-bass and bass responses, it has a maximum power of 1.200W in a single-channel, with frequency responses at a rate from 8Hz to 250Hz. As it has customizable features, it can be set according to the predominant frequency and with your car trunk size. Beyond the BASS BOOST and the central frequency option, this product can deliver even more adjustments, such as displacement control through the subsonic filter, volume control, and low pass filter, each one contributing to a right measured bass.
Features:
- Operation class Class D
- Number of Channels : 01
- Maximum power
- 1 Ohm Version
- @ 14,4 VDC - 1 OHM: 1200 W RMS
- @ 14,4 VDC - 2 OHMS: 680 W RMS
- 2 Ohm Version
- @ 14.4 VDC - 2 Ohms: 1200 W RMS
- @ 14.4 VDC - 4 Ohms: 680 W RMS
- 1 Ohm Version
- Input Sensitivity: 230mV
- Signal to Noise Ratio: >90dB
- Frequency Response: 8Hz to 250Hz (-3dB)
- Crossover high pass (HPF) Variable, 8 to 30Hz (-12dB/8ª)
- Crossover low pass (LPF) Variable, 60 to 250Hz (-12dB/8ª)
- Bass Boost: Parametric, 35 to 60Hz, 0 to +12dB
- Thermal Management: Smart Cooler with 2 speed
- Input Impedance: 10K OHMS
- Output Impedance: 1 Ohm
- Protection system: Output overload, low and high power voltage
- Min. Supply Voltage: 9 VDC
- Maximum Power Supply Voltage: 16 VDC
- Consumption at rest: 0.9 A
- Maximum music consumption: 55 A
- Maximum consumption in sinusoidal signal: 110 A
- Dimensions (H x W x D): 7.24" x 2.13" x 6.97"
- Weight: 3.06lb
