Product Description

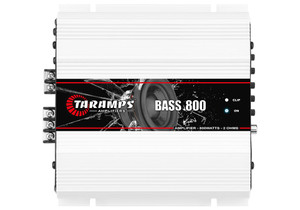

The Taramps Bass 800 amplifier from Taramps was carefully developed with the highest technology, with high income and performance for automotive sound systems and aimed at subwoofer and bass responses, in the frequency range from 8Hz to 250Hz. It has a maximum power of 800 Watts in 1 channel of 1 ohms, with customized adjustments according to the size of the trunk and the frequency of most prominent of each vehicle, through the BASS BOOST and the option of choosing the central frequency. This amplifier module can offer much more control of excessive displacement, through SUBSONIC FILTER, volume control and LOW PASS, to make your bass in the right measure. Welcome to the sound world of Taramps!
- OPERATION CLASS Class D
- NUMBER OF CHANNELS 01
- MAXIMUM POWER
- 1 OHM Version
- @ 14,4 VDC – 1 OHM: 800 W RMS
- @ 14,4 VDC – 2 OHMS: 560 W RMS
- 2 Ohm Version
- @ 14.4 VDC - 2 Ohms: 800 Watts RMS
- @ 14.4 VDC - 4 Ohms: 560 Watts RMS
- 1 OHM Version
- INPUT SENSITIVITY 220 mV
- SIGNAL TO NOISE RATIO > 90dB
- FREQUENCY RESPONSE (Full Range) 8Hz ~ 250Hz (-3dB)
- CROSSOVER HIGH PASS (HPF) 8Hz ~ 30Hz (-12dB/8ª)
- CROSSOVER LOW PASS (LPF) 60Hz ~ 250Hz (-12dB/8ª)
- BASS BOOST (35 ~ 60Hz) 0 ~ +12dB
- THERMAL MANAGEMENT Smart Cooler com 2
- INPUT IMPEDANCE 10K Ohms
- SUPPLY VOLTAGE 9 VDC
- MAXIMUM POWER SUPPLY VOLTAGE 16 VDC
- CONSUMPTION AT REST 1,20 A
- MAXIMUM MUSIC CONSUMPTION 43 A
- MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 86 A
- DIMENSIONS (H X W X D) 180 x 51 x 175mm
