Product Description

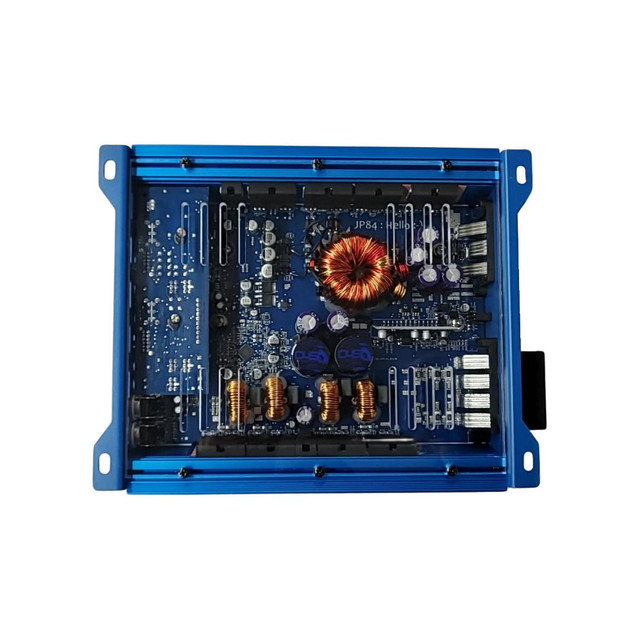

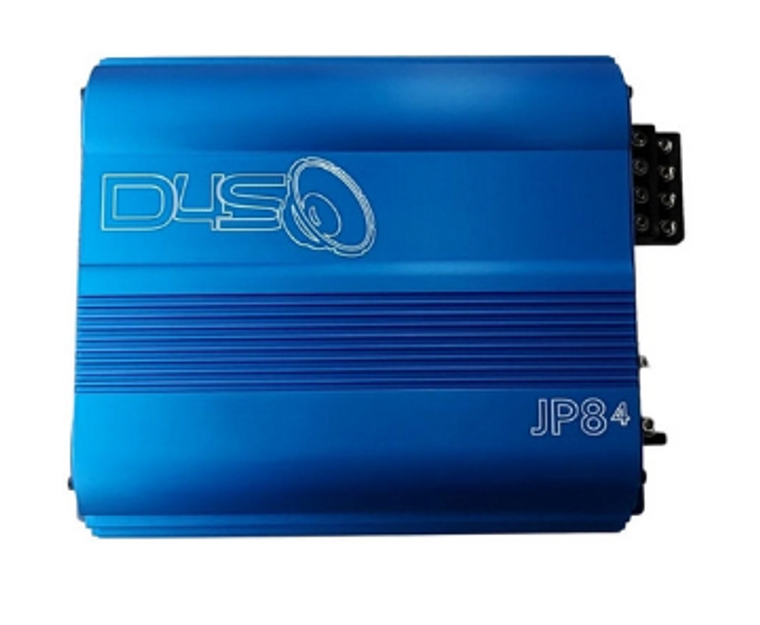

JP 84 - 4 Channel Amplifier Features:
- FULL RANGE DIGITAL MULTI-CHANNEL AMPLIFIER
- STABLE INTO 2 OHM STEREO OR 4 OHM BRIDGED
- HIGH SPEED MOSFET POWER SUPPLY
- VARIABLE HIGH PASS FILTER
- VARIABLE LOW PASS FILTER
- CROSSOVER MULTIPLY X10
- BAND PASS FILTER CAPABLE
- CLASS: D
- 4 WAY PROTECTION CIRCUITS
Independent 3rd Party Testing: Tested at 40 Hz PER Channel, which is the hardest test you can put on a 4 channel amplifier.
- 124 Watts Per Channel at 4 Ohms at 14.4V - CERTIFIED
- 163 Watts Per Channel at 2 Ohms at 14.4V - CERTIFIED
Our Ratings: (WHICH WE RATE FOR WORST CASE SCENARIO, THERE IS ALWAYS MORE)
- RMS POWER: 120W x 4 @ 14.4v - 2 ohms
- RMS POWER: 90W x 4 @ 14.4v - 4 ohms
- BRIDGE POWER: Range 180 - 284w x 2
JP - 84 TUNING
- Freq Response: 10Hz - 40KHz
- High Pass Filter: 20Hz - 800Hz
- High Pass Multipliers: 1x - x10 ( 200Hz - 8 kHz)
- Low Pass Filter: 50 Hz - 800 Hz
- Low Pass Multipliers : x1 - x10 ( 500Hz - 8kHz)
- Signal to Noise Ratio: 95dB <
- Fuse Rating: 60A
- Operating voltage : 9 to 16 Volts
JP84 Inputs & Dimensions
- 4 GA input on Power Wire
- 8 GA input for Speaker Wire
- 7.87" x 7.4" W x 2.24"H
- DOWN4SOUND AMPLIFIER COMBOS ARE AVAILABLE FOR THE JP84
