Down4Sound JP234 | 2000w 4 Channel Amplifier

Down 4 Sound
SKU:
DS - JP 234-nli
$299.00
$499.99
(You save $200.99 )
(No reviews yet)
Weight:
20.00 LBS
Fixed Shipping Cost:
$25.00
Current Stock:
Adding to cart… The item has been added
Questions about compatibility?
Not sure if this product is right for your build? Use Build Help or click the Chatway chat bubble for live assistance.
Description

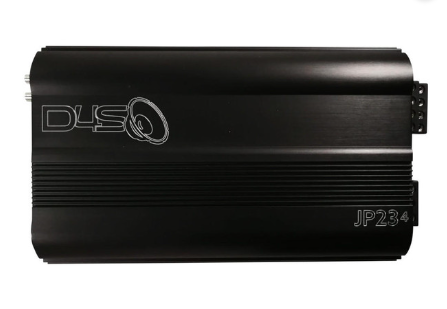

Down4Sound JP234 4-Channel Amplifier

A full-range Class D amplifier for car audio speakers. Use the rated specifications below when comparing channel output and planning speaker loads.

Specifications at a Glance

Rated RMS at 14.4V 234W × 4 at 4 ohms; 334W × 4 at 2 ohms
Bridged output Listing: 640–740W × 2; manual: 740W × 2 at 4 ohms
Minimum load 2 ohms stereo; 4 ohms bridged
Frequency response 10Hz–22kHz (manual)
Crossover controls Variable high-pass and low-pass; ×10 multiplier; band-pass capable
Fuse rating 120A; external in-line fuse required
Terminals 4-gauge power input; 8-gauge speaker input per listing
Dimensions (listing) 11.8 × 7.4 × 2.24 inches

The manual lists slightly different dimensions. Confirm clearance against the actual unit before installation. Independent dyno results below are test results, not a recommendation to use a load below the manual’s minimum.

Electrical Requirements

Choose power and ground wiring for cable length and current demand, with proper battery-side fusing and a clean ground. Account for this amplifier and any subwoofer amplifier when planning alternator output and battery reserve. Use the amp draw calculator to estimate demand and compare wiring options. Original features, ratings and test results follow.

JP 234 - 4 Channel Amplifier Features:

  • FULL RANGE DIGITAL MULTI-CHANNEL AMPLIF IER
  • STABLE INTO 2OHM STEREO OR 4OHM BRIDGED
  • HIGH SPEED MOSFET POWER SUPPLY
  • VARIABLE HIGH PASS FILTER
  • VARIABLE LOW PASS FILTER
  • CROSSOVER MULTIPLY X10
  • BAND PASS FILTER CAPABLE
  • Operating voltage : 9 to 16 Volts
  • CLASS: D
  • 4 WAY PROTECTION CIRCUITS
  • Signal to Noise Ratio 95db <
  • Fuse Rating 120A



  • 3rd Party Independent Testing Results: Big D Wiz with SMD Amplifier Dyno
  • 4 ohms at 14.4v : 334W RMS - CERTIFIED
  • 2 ohms at 14.4v : 425W RMS = CERTFIFIED
  • BRIDGED AT 2 OHMS : 678w RMS - CERTIFIED



  • OUR RATINGS: ( WE RATE POWER AT WORST CASE SCENARIO, THERE IS ALWAYS MORE)
  • RMS POWER: 334W x 4 @ 14.4v - 2 ohms
  • RMS POWER: 234W x 4 @ 14.4v - 4 ohms
  • BRIDGE POWER: Range 640 - 740w x 2  '



Inputs and Dimensions

  • 4 GA input on Power Wire
  • 8 GA input for Speaker Wire
  •  Dimensions: 11.8 x 7.4 x 2.24 inches



JP234 Manual
