Product Description

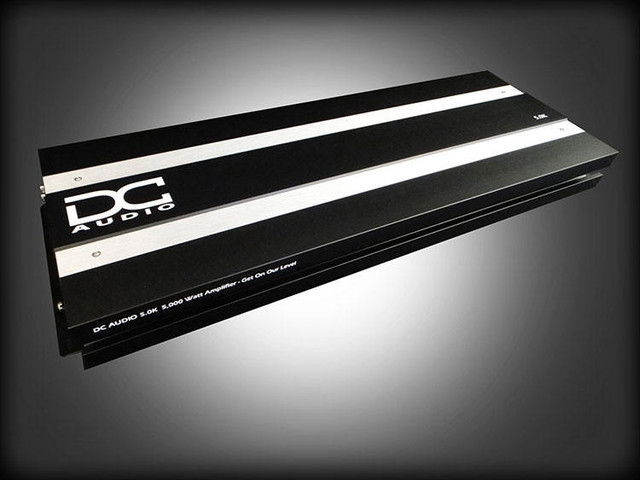

The 5.0kw competition series amplifier is a 5,000 watt mono block. It is capable of running up to 18 volts for up to 7,300 watts. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when strapped.
It comes with a bass knob and a clipping indicator. For power inputs it will accept dual 0 awg for power and dual 0 awg for ground.
Features
- Voltage 5kw
- Output Power (RMS) 4 ohm 4V 750Wx1
- 2 ohm 4V 1,800x1
- 1 ohm 4V 3,500Wx1
- 1 ohm 16V 4,000Wx1
- 1 ohm 18V 5,100Wx1
- Input Sensitivity 6V~0.2V
- Low Pass Filter Switchable
- ( @ 24 dB Slope) Variable Hz 35~250
- Subsonic Filter Switchable
- ( @ 24 dB Slope) Variable Hz 10~50
- Bass Boost Variable dB 0-9dB
- Frequency Response Hz 15-270
- Signal to Noise Ratio dB 100
- Damping factor 150<
- Efficiency @ 4ohm % Over 90%
- THD @ 4ohms Less than 0.1%
- Fuse Rating 300 Amps
- Linked Fuse Rating 600 Amps
- Indicator Power Yes
- Protection Yes
- Clip Yes
- Speaker & Power terminal Mold Type Yes
- Power Gauge 0Ga
- Heatsink Length 26" (540mm)
- Heatsink Width 38" (238mm)
- Heatsink Height 35" (59.6mm)
