Product Description

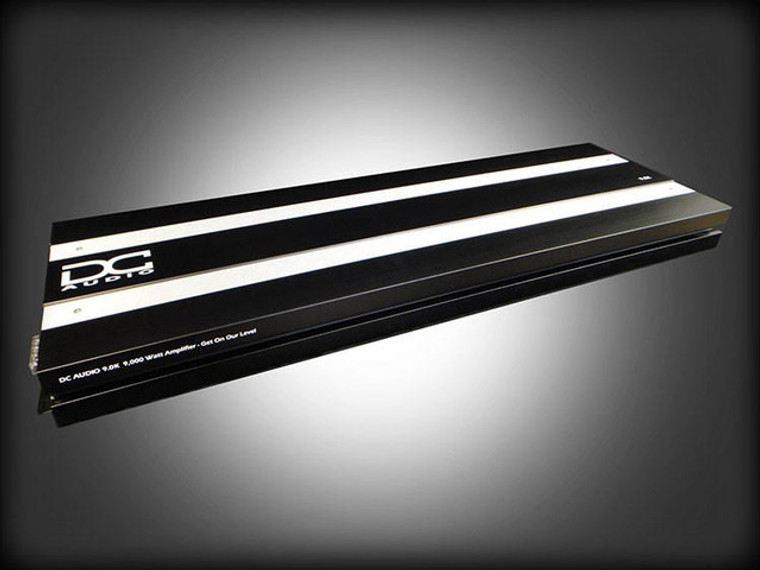

The 9.0kw competition series amplifier is a 9,000 watt mono block. It is capable of running up to 18 volts for up to 11,000 watts. It is a linkable amp and designed to run at 1 ohm per amp or 2 ohms when strapped.
It comes with a bass knob and a clipping indicator. For power inputs it will accept triple 0 awg for power and triple 0 awg for ground.
Features
Voltage 9.0kw
Output Power (RMS) 4 ohm 14.4V 2,400Wx1
2 ohm 14.4V 4,800x1
1 ohm 14.4V 9,000Wx1
1 ohm 16V 9,800Wx1
1 ohm 18V 11,000Wx1
Input Sensitivity 6V~0.2V
Low Pass Filter Switchable
( @ 24 dB Slope) Variable Hz 35~250
Subsonic Filter Switchable
( @ 24 dB Slope) Variable Hz 10~50
Bass Boost Variable dB 0-9dB
Frequency Response Hz 15-270
Signal to Noise Ratio dB 100
Damping factor 150<
Efficiency @ 4ohm % Over 90%
THD @ 4ohms Less than 0.1%
Fuse Rating 900 Amps
Linked Fuse Rating 1,800 Amps
Indicator Power Yes
Protection Yes
Clip No
Speaker & Power terminal Mold Type Yes
Power Gauge 0Ga x 3
Heatsink Length 34.65" (880mm)
