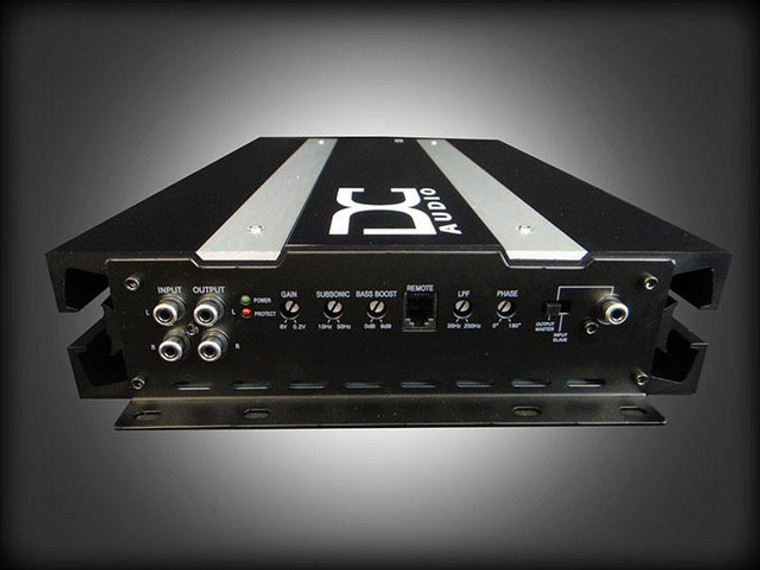

Product Description
The 1.2kw competition series amplifier is a 1,200 watt mono block. It is capable of running up to 16 volts for up to1,450 watts. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when strapped.
It comes with a bass knob.
For power inputs it will accept 4 awg for power and 4 awg for ground.
Features Voltage 1.2kw
- Output Power (RMS) 4 ohm 4V 350Wx1
- 2 ohm 4V 700Wx1
- 1 ohm 4V 1,200Wx1
- 1 ohm 16V 1,450Wx1
- 1 ohm 18V No
- Input Sensitivity 6V~0.2V
- Low high Filter Switchable
- ( @ 24 dB Slope) Variable Hz 35~250
- Subsonic Filter Switchable
- ( @ 24 dB Slope) Variable Hz 10~50
- Bass Boost Variable dB 0-9dB
- Frequency Response Hz 15-270
- Signal to Noise Ratio dB 100
- Damping factor 100<
- Efficiency @ 4ohm % 81%
- THD @ 4ohms Less than 0.1%
- Fuse Rating 120 Amps
- Indicator Power Yes
- Protection Yes
- Clip No
- Speaker & Power terminal Mold Type Yes
- Power Gauge 4Ga
- Heatsink Length 5" (419mm)
- Heatsink Width 38" (238mm)
