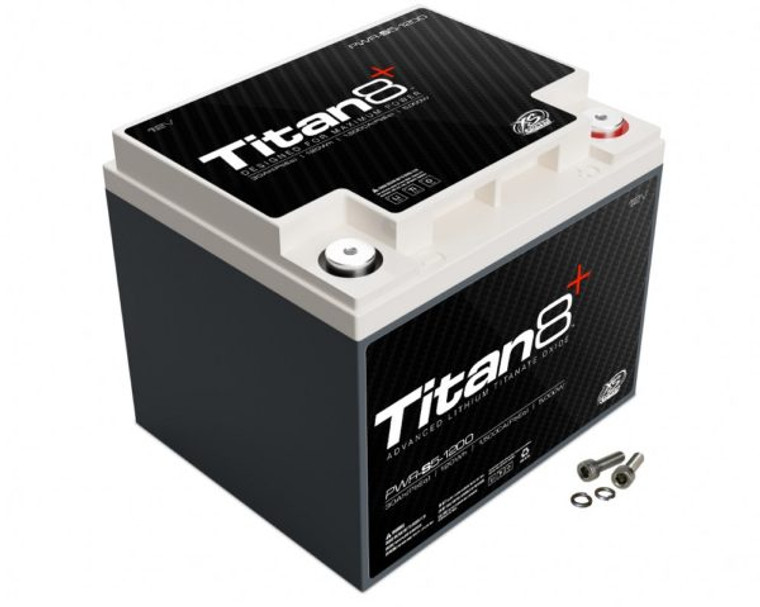

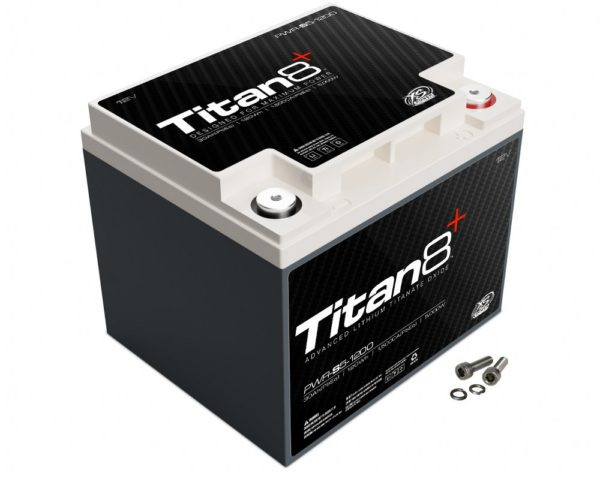

XS Power Titan8 PWR-S5-1200 – 5000w Rated Lithium Battery
This XS Power Titan8 PWR-S5-1200 Lithium Titanate Oxide (LTO) series uses a very high power lithium battery that is designed for very high burst output (up to 100 times its capacity) as well as very high charge current (30-60 times its capacity). This translates to a single 10 Ah module that can support burst current up to 1,000 A, and can accept 300 A of continuous charge current. The built in 2/0 bussing allows up to 4 Positive and 4 Negative hidden direct connections to each module without the need for any external exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of nearly any configuration from 12 V, 24 V, 36 V, or any configuration imaginable.
Weight Lbs. – 7.25 lb
Weight Kgs. – 3.29kgs
Length – 7.79 in
Height – 6.69 in
Width – 6.54 in
Voltage – 12 V
Wattage – 5,000
MAX Amps – 2,000
Energy Wh – 120
CA – 1,000 A
CA Pb Eq – 1,500 A
Ah – 10
Ah Pb Eq – 30
M6 Terminal Hardware Included
1 Year Warranty
https://www.4xspower.com/TITAN8-BCI_Instructions.pdf
