Product Description

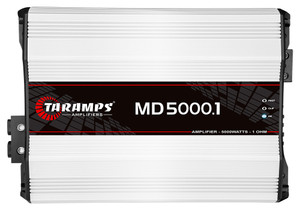

The Taramps MD 5000.1 amplifier is developed with the highest technology and performance for automotive sound systems. It is mono, with a maximum power of 5000Watts RMS with impedance of 1 OHM or 2 OHM, and 1 channel of 5000W RMS. The MD 5000.1 is FULL RANGE playing all frequencies in the right measure for you.
- MAXIMUM POWER
- 1 Ohm Version:
- @ 12.6 VDC – 1 OHM: 5000W RMS
- @ 12.6 VDC – 2 OHMS: 3200W RMS
- 2 Ohm Version:
- @ 12.6 VDC – 2 OHMS: 5000W RMS
- @ 12.6 VDC – 4 OHMS: 3200W RMS
- CLASS OF OPERATION Class D
- NUMBER OF CHANNELS 01
- INPUT SENSITIVITY 220 mV
- SIGNAL / NOISE RATIO> 90dB
- FREQUENCY RESPONSE 10Hz ~ 10KHz (-3dB)
- CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB / 8th) Variable
- CROSSOVER LOW PASS (LPF) 90Hz ~ 10KHz (-12dB / 8th) Variable
- BASS BOOST 0 ~ 10dB (50Hz) Freq. Variable (35 ~ 55)
- EFFICIENCY 81%
- INPUT IMPEDANCE 22K Ohms
- PROTECTION SYSTEM Short on output, Short on output relative to GND, Low impedance, Low and high voltage supply, Thermal protection.
- MINIMUM POWER SUPPLY VOLTAGE 9VDC
- MAXIMUM POWER SUPPLY VOLTAGE 16VDC
- CONSUMPTION AT REST 1.20 A
- MAXIMUM MUSICAL CONSUMPTION 244.5 A
- MAXIMUM CONSUMPTION IN SIGNAL SIGNAL 489 A
- DIMENSIONS (LXAXP) 228 x 70 x 327mm
- WEIGHT 2.5Kg
