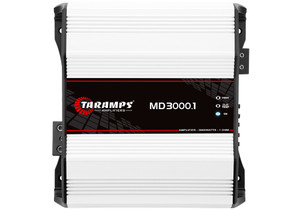

Taramps MD 3000.1 Amplifier - 2 Ohm
Taramps
$284.00
(No reviews yet)
Write a Review
Taramps
Taramps MD 3000.1 Amplifier - 2 Ohm
The Taramps MD 3000.1 amplifier is developed with the highest technology and performance for automotive sound systems. It is mono, with a maximum power of 3000w RMS with impedance of 1 OHM or 2 OHM, and 1 channel of 3000w RMS. The MD 3000.1 is FULL RANGE playing all frequencies in the right measure for you.
- MAXIMUM POWER
- 1 Ohm Version:
- @ 12.6 VDC – 1 OHM: 3000W RMS
- @ 12.6 VDC – 2 OHMS: 1920W RMS
- 2 Ohm Version:
- @ 12.6 VDC – 2 OHMS: 3000W RMS
- @ 12.6 VDC – 4 OHMS: 1920W RMS
- 4 Ohm Version:
- @ 12,6 VDC – 4 OHMS: 3000W RMS
- @ 12,6 VDC – 8 OHMS: 1920W RMS
- OPERATION CLASS Class D
- NUMBER OF CHANNELS 01
- INPUT SENSITIVITY 220 mV
- SIGNAL TO NOISE RATIO >90dB
- FREQUENCY RESPONSE 10Hz ~ 18KHz (-3dB)
- CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable
- CROSSOVER LOW PASS (LPF) 90Hz ~ 18KHz (-12dB/8ª) Variable
- BASS BOOST 0 ~ 10dB (50Hz) Variable Frequency (35 ~ 55)
- EFFICIENCY 79%
- INPUT IMPEDANCE 15K Ohms
- PROTECTION SYSTEM Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection
- SUPPLY VOLTAGE 9VDC
- MAXIMUM POWER SUPPLY VOLTAGE 16VDC
- CONSUMPTION AT REST 0 A
- MAXIMUM MUSIC CONSUMPTION 150 A
- MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 300 A
- DIMENSIONS (WXHXD) 98" x 2.76" x 8.58" (228 x 70 x 218mm)
- WEIGHT 5lb (2,5kg)
- 1 Ohm Version:
