Product Description

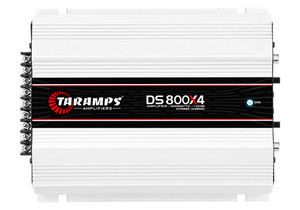

The Taramps DS 800×4 amplifier module is carefully developed with state-of-the-art technology, offering high efficiency and performance for automotive audio systems. Classified as Multi-channel, It has 4-channels of 200 Watts RMS, with maximum power of 800 Watts RMS, impedance of 2 ohm and is compatible with any frequency, that is, it is FULL RANGE. Versatility, efficiency and quality in a single Taramps product.
- OPERATION CLASS Class D
- NUMBER OF CHANNELS 04
- MAXIMUM POWER @ 12.6 VDC – 2 OHMS: 800W RMS (4 x 200W RMS)
- @ 12.6 VDC – 4 OHMS: 544W RMS (4 x 136W RMS)
- 2 channels bridged – 2 OHMS: 800WRMS (2 x 400WRMS)
- INPUT SENSITIVITY 250mV
- SIGNAL TO NOISE RATIO >88dB
- FREQUENCY RESPONSE 10Hz to 36KHz (-3dB)
- CROSSOVER HIGH PASS (HPF) 90Hz (-12dB/8ª) Fixed
- CROSSOVER LOW PASS (LPF) 90Hz (-12dB/8ª) Fixed
- INPUT IMPEDANCE 18K Ohms
- OUTPUT IMPEDANCE 2 Ohms
- PROTECTION SYSTEM Output overload
- SUPPLY VOLTAGE 9VDC
- MAXIMUM POWER SUPPLY VOLTAGE 16VDC
- CONSUMPTION AT REST 4A
- MAXIMUM MUSIC CONSUMPTION @12.6VDC: 43A
- MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 86A
- DIMENSIONS (WXHXD) 17″ x 2.05″ x 8.94″ (173 x 52 x 227mm)
- WEIGHT 52lb (1,43kg)
