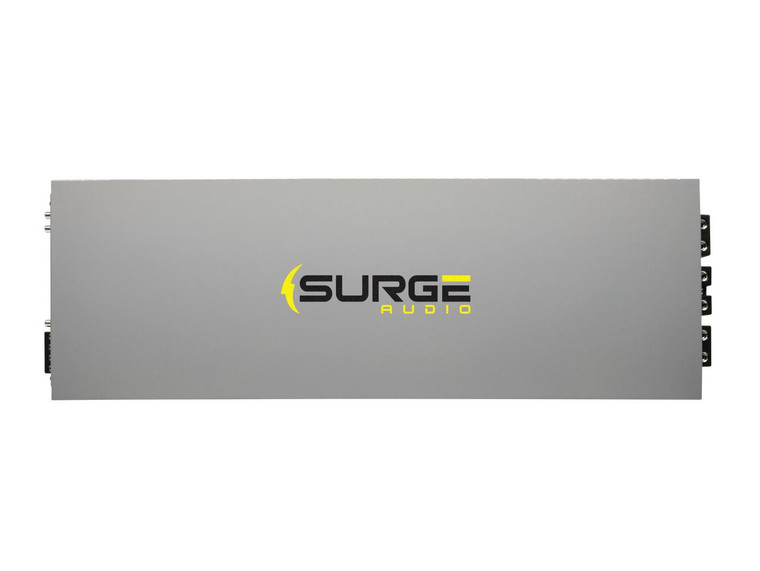

Surge Audio - PS-10000.1 | 10,000 WATT MONOBLOCK CAR AMPLIFIER

Introducing Power Surge - Surge Audio's flagship series of high power amplifiers. These models were designed from the ground up, to be anything other than average. PS Series amplifiers feature a military-grade PCB with the most copper tracing possible, added standoffs for extreme vibration resistance, and overbuilt transformers to withstand the heaviest of abuse.

Cooling is key. The PS Series heatsink was custom tooled to optimize cooling capacity. We made use of thermal modeling to determine the best possible heat dissipation capacity of our heatsink options. Beyond that, we have spaced the mounting feet 1/4" below the heatsink to allow for additional airflow below the backplate of the amplifier.

All PS Series amplifiers include silver plated Tiffany style RCA inputs, four-stage intelligent protection circuitry, and a remote bass knob with clipping, voltage, and temperature indication.

Features:

High Efficiency Class D Monoblock Architecture

0.5 ohms Stable & Covered Under Warranty

Subsonic Filter - 24dB Slope

Low Pass Filter - 24dB Slope

Bass Boost - 12dB Slope

Clipping Indicator

Triple 1/0 Power & Ground Inputs

Tiffany-Style RCA Inputs

4-Stage Protection Circuit

Wired Remote with Clipping, Voltage, and Temperature Indication

Specifications:

RMS Power @ 2 ohms Strapped: 20,000 Watts (14.4 V)

RMS Power @ 1 ohm: 10,000 Watts (14.4 V)

RMS Power @ 2 ohms: 7,500 Watts (14.4 V)

Frequency Response: 10 Hz - 250 Hz

Input Sensitivity: 0.2 V - 6 V

Signal to noise Ratio: 90dB

Minimum Impedance: 0.5 ohms

Low Pass Filter: 35 Hz - 250 Hz

Subsonic Filter: 10 Hz - 50 Hz

T.H.D. Continuous @ 4 ohms: 0.1%

Efficiency @ 4 ohms: 90%

Operating Voltage: 9 V - 16 V

Recommended Fuse Rating: 1100 A

Dimensions: 27.56"L x 9.05"W x 2.56"H

Dyno Results:

Dynamic 0.8 ohms: 15,885 Watts @ 14.15 V

Certified 1 ohm: 10,807 Watts @ 13.38 V

Uncertified 1 ohm: 10,735 Watts @ 13.15 V

Dynamic 1 ohm: 13,600 Watts @ 14.37 V

Certified 2 ohms: 7,559 Watts @ 14.23 V

Uncertified 2 ohms: 7,656 Watts @ 14.11 V

Dynamic 2 ohms: 7,911 Watts @ 14.55 V

Certified 4 ohms: 4,562 Watts @ 14.50 V

Uncertified 4 ohms: 4,610 Watts @ 14.48 V

Dynamic 4 ohms: 4,506 Watts @ 14.38 V
