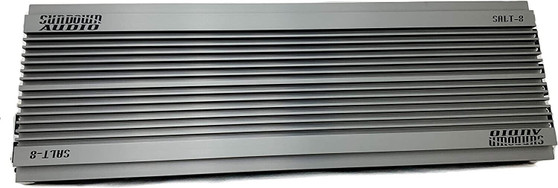

Sundown Audio SALT 8k Amplifier
Sundown AudioBRAND NEW OLD STOCK! WILL COME WITH ACRYLIC BACK SHIPPED SEPPERATLY
SALT-8 DIGITAL MONOBLOCK FEATURES
• Digital Class-D Linkable Mono Block Amplifier
• Dual MOS-FET PWM Power Supply
• 1 ohm Stable Load
• 24 dB/Octave – Variable Low Pass Filter
• 24 dB/Octave – Variable Subsonic Filter
• 9 dB/Octave – Variable Bass Boost
• 180° Variable Phase Shift
• 4 Way Protection Circuit (Thermal, Voltage, Speaker Short, DC Offset)
• Wired Remote Control with Voltage & Temperature Display and Clipping Indicator
SPECIFICATIONS (Tested @ 12.8 V)
2 ohms Linked RMS 16000 W
1 ohm Mono RMS 8000 W
2 ohms Mono RMS 4000 W
4 ohms Mono RMS 2000 W
Recommended Fuse Rating 800 A
Low Pass Filter (Variable) 35 Hz-250 Hz
Subsonic Filter (Variable) 10 Hz-50 Hz
Bass Boost @ 45 Hz 0-9dB
Phase Shift Control 0-180 Degrees
Input Sensitivity (+/- 5%) 6 V-0.2 V
Frequency Response (+/- 1dB) 10 Hz-250 Hz
S/N Ratio 90dB
Working Voltage 9 V-15.5 V
T.H.D @ 4 ohms < 0.1%
Efficiency @ 4 ohms 90% <
Dimensions 30.71″ x 10.08″ x 2.96″
