Down4Sound JP93 9300W RMS Monoblock Amplifier

Down4Sound JP93 9300W RMS Monoblock Amplifier

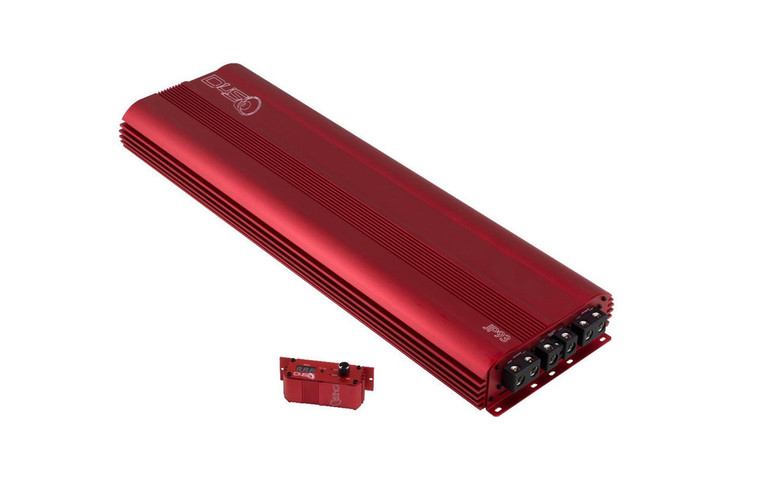

The Down4Sound JP93 is a strappable digital monoblock amplifier built for high-power subwoofer systems. It is stable into a 1-ohm mono load and uses a high-speed MOSFET power supply, three 0-gauge power and ground terminals, and speaker-wire outputs that accept up to 4-gauge wire.

Available colors: Red, Green, Blue, White, Titanium, Teal, Black, Orange, and Purple. Select the required color above; availability is determined by the selected variant.

RMS Power Ratings

• 1 ohm: 9,300W x 1
• 2 ohms: 7,100W x 1
• 4 ohms: 4,400W x 1
• Strapped: 18,600W x 1

Filters and Controls

• Frequency response: 14Hz–263Hz
• Low-pass filter: 35Hz–250Hz
• Subsonic filter: 10Hz–50Hz
• Phase: 0–180°
• Bass boost: 0–9dB
• Bass frequency: 20Hz–80Hz
• Input sensitivity: 6V–0.2V

Electrical and Physical Specifications

• Signal-to-noise ratio: Greater than 91dB
• Total harmonic distortion: Less than 0.1%
• Operating voltage: 12V–15.5V
• Fusing: 1,000A total for a single amplifier; 2,000A strapped
• Dimensions: 28.34 in. L x 9.37 in. W x 2.71 in. H

Protection and Included Control

• Four-way protection for thermal, high and low voltage, speaker short, and DC faults
• Variable low-pass filter, subsonic filter, bass boost, and bass frequency controls
• Bluetooth remote bass control with voltmeter, amplifier temperature, and clipping indicator
• High-purity copper printed circuit board

Warranty Information

The Down4Sound limited warranty covers defects in materials and workmanship for the original owner. It does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation outside the listed specifications, or products modified or repaired by anyone other than Down4Sound.

Warranty returns require the original sales invoice or receipt and an RMA number. The customer is responsible for shipping the product for examination. Covered products are shipped back at no charge; non-warranty repairs, no-defect returns, and related return shipping must be paid before return shipment.

Down4Sound may repair or replace a covered product at its discretion. Damage caused by improper return packaging is the customer’s responsibility. Any purchased extended warranty begins on the original purchase date and must appear on the sales invoice or receipt.
