Product Description

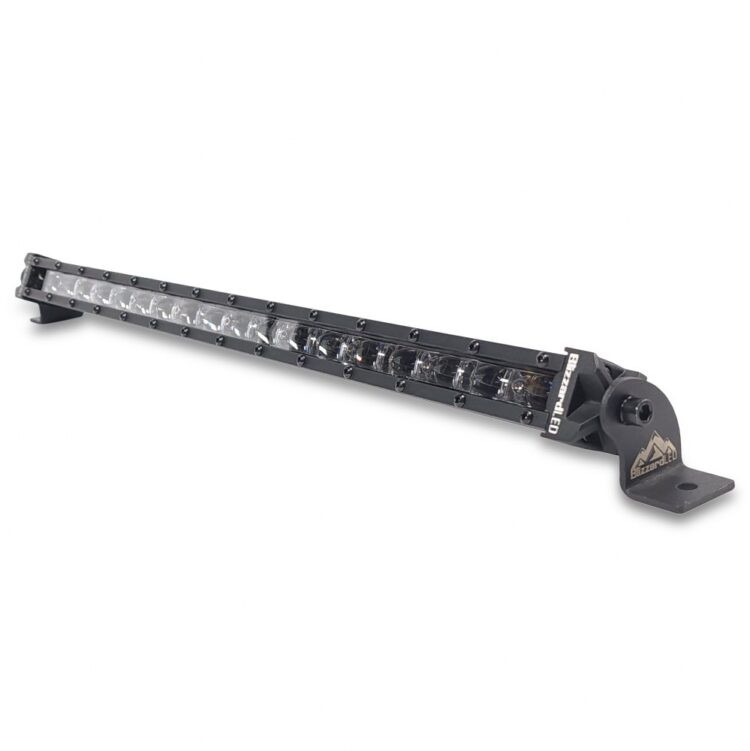

BlizzardLED’s compact series LED lightbars are inspired with the off-roader in mind. The 20″ single row light bars are designed for maximum output in a low profile and compact package. Utilizing 18, 5w high intensity LEDs and unique 6D reflectors, this 20″ 90w LED light bar ensures a highly efficient and focused beam. Our compact series also features a slim, sleek aluminum housing with meticulously engineered fins to dissipate heat that increases life span and durability. All of our compact series LED lightbars are backed by a proven manufacturer defect warranty so you can rest assured, you’re covered when life throws you a curve ball.
Compact 20″ Single Row Features:
- 20″ in size
- Operating Voltage: 10-30V DC
- 5w each CREE XTE LED chip
- 6D reflector
- 45° driving beam pattern
- 1 LUX @ 225M
- 9900 Lumen
- Black aluminum housing
- 6000K Color Temperature
- PMMA Lens
- IP67 Certified
- -40C – 85C degrees Working Temperature
- 50000+ hours lifespan
What’s in the box:
- One (1) LED light bar
- Universal Compact Series Light Bar Bracket Set
Installation:
We made sure installation of our compact series LED light bars would be a breeze. Every LED light bar is equipped with pre-stripped wire pig tail to easily connect with any of our wiring harnesses.
Mounting:
BlizzardLED compact series light bars come with a color matching Universal Compact Series Light Bar Bracket Set and mounting hardware.
Warranty
All BlizzardLED products come with a 2 year manufacturer defect warranty. User error,
improper installation, damage due to normal wear and tear is not covered. Warranty claims
are subject to our discretion. Latest warranty info is on the site.
Warranty will be upgraded to a 3 year manufacturer defect warranty if the BlizzardLED
product was purchased and installed by an authorized BlizzardLED dealer.
