Taramps MD 800.1 Amplifier - 1 Ohm
Taramps
$188.00
(No reviews yet)
Write a Review
Taramps

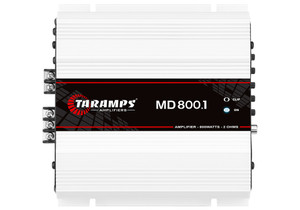

Taramps MD 800.1 Amplifier - 1 Ohm
The Taramps MD 800.1 amplifier is developed with the highest technology and performance for automotive sound systems. It has been carefully developed with the highest technology, offering high performance and quality for the most varied automotive sound systems, serving the entire frequency range, in other words, it is a FULL RANGE module. It is an amplifier classified as mono, has a channel with a maximum power of 800 Watts RMS. Welcome to the sound world of Taramps.
- OPERATION CLASS Class D
- NUMBER OF CHANNELS 01
- MAXIMUM POWER
- 1 Ohm Version
- @ 12.6 VDC – 1 OHM: 800 W RMS
- @ 12.6 VDC – 2 OHMS: 560 W RMS
- 2 Ohm Version
- @ 12.6 VDC – 2 OHM: 800 W RMS
- @ 12.6 VDC – 4 OHMS: 560 W RMS
- INPUT SENSITIVITY 220mV (RCA) / 6V (WIRE)
- SIGNAL TO NOISE RATIO > 90dB
- FREQUENCY RESPONSE (Full Range) 10Hz ~ 20KHz (-3dB)
- CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable
- CROSSOVER LOW PASS (LPF) 90Hz ~ Full (-12dB/8ª) Variable
- BASS BOOST Parametric (35 ~ 55Hz) 0 ~ 10dB
- THERMAL MANAGEMENT Smart Cooler with 2 speeds
- INPUT IMPEDANCE 10K Ohms
- PROTECTION SYSTEM Output overload, low and high supply voltage
- SUPPLY VOLTAGE 9 VDC
- MAXIMUM POWER SUPPLY VOLTAGE 16 VDC
- CONSUMPTION AT REST 20 A
- MAXIMUM MUSIC CONSUMPTION 45 A
- MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 90 A
- DIMENSIONS (H X W X D) 08″ x 2.00″ x 6.89″
- WEIGHT 2.69lb
- 1 Ohm Version
