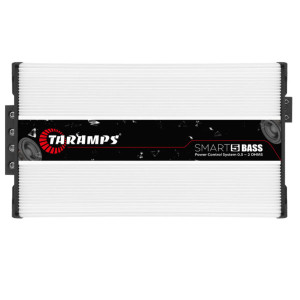

Taramps BASS 5k Amplifier
Taramps
$515.00
(No reviews yet)
Write a Review
Taramps
Taramps BASS 5k Amplifier
The BASS 5k amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems focused on subwoofer and bass response. Its maximum power is 5.000W using 1 channel of 1 OHM, and frequency responses from 8Hz to 250Hz, with customized adjustments according to the size of the trunk, and the frequency of each vehicle. Through the BASS BOOST and the option of choosing the center frequency, this product can offer much more, excessive displacement control, through SUBSONIC FILTER, volume control and LOW PASS, to hear your bass in the right measure.
TECHNICAL INFORMATION
OPERATION CLASS
Class D
NUMBER OF CHANNELS
01
MAXIMUM POWER
@ 14,4 VDC - 1 OHM: 5000W RMS
@ 14,4 VDC - 2 OHMS: 3200W RMS
INPUT SENSITIVITY
220mV
SIGNAL TO NOISE RATIO
>95dB
FREQUENCY RESPONSE
8Hz ~ 250Hz (-3dB)
CROSSOVER HIGH PASS (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable
CROSSOVER LOW PASS (LPF)
60Hz ~ 250Hz (-12dB/8ª) Variable
BASS BOOST
35Hz ~ 60Hz (0 ~10dB)
EFFICIENCY
83%
INPUT IMPEDANCE
22K Ohms
OUTPUT IMPEDANCE
1 Ohm
PROTECTION SYSTEM
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection
MIN. SUPPLY VOLTAGE
9VDC
MAXIMUM POWER SUPPLY VOLTAGE
17VDC
CONSUMPTION AT REST
1.20A
MAXIMUM MUSIC CONSUMPTION
209A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
418A
DIMENSIONS (H X W X D) MM
9.41" x 2.87" x 12.87"
WEIGHT
11lb
