Product Description
The purpose and benefit of the D’Amore Engineering / SMD Crossover Calibrator.
Most modern car audio amplifiers have a built in crossover on the side. Usually, it will start at 30hz and have a huge gap, all the way up to (sometimes) 500hz. The purpose of this tool is to enable the installer to set the crossover frequency of an electronic crossover to the desired frequency, accurately and quickly. Enter "Competition Mode" and easily match gains on any 4-channel amplifier or even multiple bass amplifiers. This is VERY important when using subwoofers that share a common chamber, especially if you have 2 (or more) amplifiers on a dual voice coil driver.

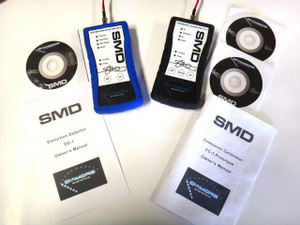

What is included?
The Crossover Calibrator (CC-1)
Protective silicon rubber boot
Calibrated Test tone CD
Harness
This manual
Pride of ownership
About the design
When you pick up the CC-1, know that you are holding a precision piece of equipment. If treated as such it should provide you with many years of reliable service. We have chosen a 9V battery as a power source for a few reasons:
They are readily available
Isolating the CC-1 from the vehicle’s electrical system for power, guarantees that it will only measure what it is supposed to measure; the audio signal, not noise in the charging system.
We also chose an RCA input connector for a few reasons:
It makes it pretty easy to measure the output of a headunit directly, if you choose to do so
Should the harness become damaged it is easily replaceable or repairable in the field
Specifications
Everyone hides these in the back of the book. We are proud of our specs, they aren’t lies, so we are putting them up front.
The Crossover Calibrator’s circuitry is digital microprocessor controlled
Crossover -3dB point accuracy +/- 0.25dB
Low Battery LED trigger battery voltage < 6.5Vdc
Auto-shut off timer 8 - 10 minutes after ON button is pressed
View the SMD Crossover Calibrat
or CC-1 Product Manual Here.
