Product Description

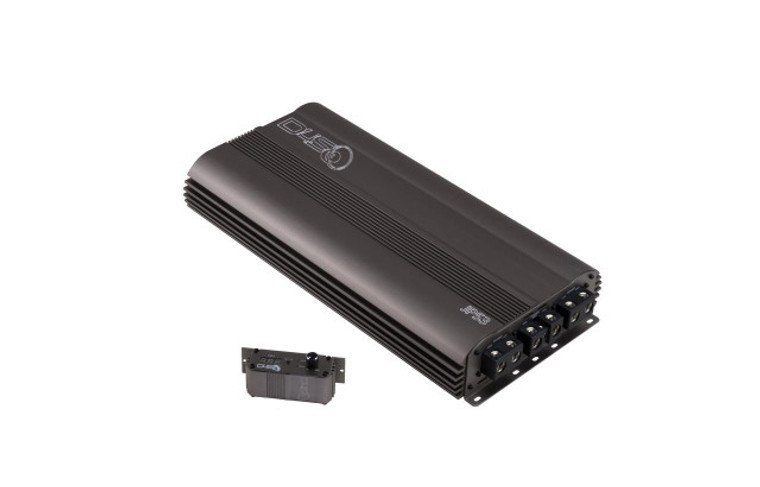

Get ready to unleash the power of your audio system with the DOWN4SOUND JP53 TITANIUM Monoblock Amplifier. Designed to deliver an electrifying audio experience, this amplifier packs a punch with its impressive performance and advanced features.
Key Features:
- Powerful Output:
- RMS Power: 5300W x 1
- Tested Power: 4100W x 1 @ 14.4V, 4 ohms
- Bridge Power: 10600W x 1
- Wide Frequency Range: 14Hz - 271Hz
- Customizable Filters:
- High Pass Filter: 35Hz - 250Hz
- Low Pass Filter: 10Hz - 50Hz
- Adjustable Phase: 0° - 180°
- Bass Boost Options: 0 - 9dB
- Bass Frequency Range: 20Hz - 80Hz
- Flexible Input Sensitivity: 6V - 0.2V
- Excellent Signal Clarity: Signal to Noise Ratio: 95dB <
- Minimal Distortion: Total Harmonic Distortion: Less than 0.1%
- Operating Voltage Range: 12V - 15.5V
- Fusing: Fuse Rating: 600A
- Strappable Capability: Fusing: 1200A
- Compact Design: Dimensions: 17.71" L x 9.37" W x 2.71" H
Advanced Features:
- STRAPPABLE DIGITAL MONOBLOCK AMPLIFIER
- STABLE INTO 1 OHM MONO LOAD
- HIGH SPEED MOSFET POWER SUPPLY
- VARIABLE LOW PASS FILTER
- VARIABLE SUBSONIC FILTER
- VARIABLE BASS BOOST & BASS FREQUENCY
- 4 WAY PROTECTION CIRCUITS (THERMAL, HIGH & LOW VOLTAGE, SPEAKER SHORT AND DC)
- HIGH PURITY COPPER PRINTED CIRCUIT BOARD
