Product Description

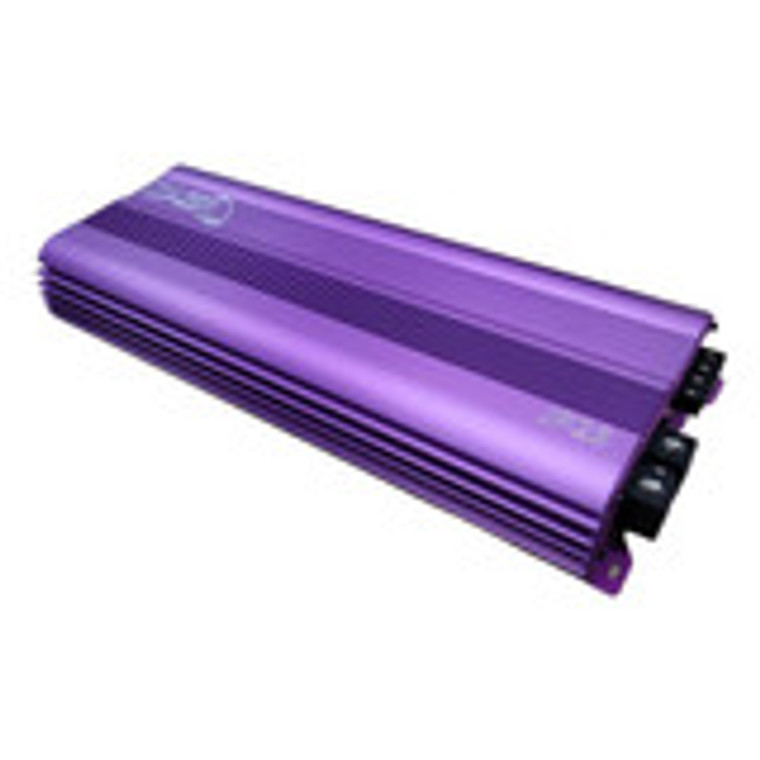

JP 23 AMP: 2300W RMS MONOBLOCK Amplifier V1.5 PURPLE
The new and improved JP23 1.5 Purple is here! This amplifier packs a thick PLEXI Back Plate, upgraded resistors to make the amplifiers even more unbeatable for the show and go ; this might be one of our most overdone 2300 watt amplifier units ever made - with R&D going back as far at least 1996 through today's era (and beyond). We took old school approach by building quality hardware: heavy heat sink + top notch circuit boards inside and made it PURPLE--then added what BassHead clientele wants now days: technology, and quality performance, and retro style. Get yours today its limited edition.

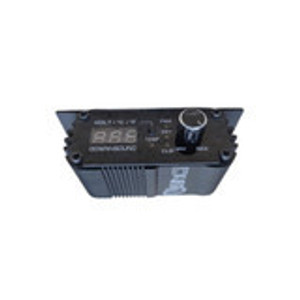

Fan stays on as soon as you power up the JP23 1.5 PURPLE & the Bass knob is now aluminum and it looks like our amplifiers
OUR STANDARD 1 YEAR MANUFACTURE DEFECTS ONLY | JUST LIKE ANY MANUFACTURE.
The warranty doesn't mean we cover it if you hook it up wrong or launch it out a potato launcher or someone dropped it or if your ex comes by and steals it. It also doesn't cover you feeding it the wrong voltage distorting it malfunction, or you submarining it in your vehicle. This Version IS NOT Marine Grade.
- ( JP23 v1.5 Manual )| EVERYTHING you need know about the JP23 V1.5. Including Strapping, Hook UP & trouble shooting.
- JP23 1.0 will work with 1.5 with features such as strapping, and exchanging parts.
There is an Optional half ohm warranty in the options above, which protects you for a .5 ohm hook-up for one year.
- Rated Power Output 2300
- RMS power, 1ohm : 2000w @ 12v | 2300 @ 14.4v
- RMS power, 2ohms: 1000w @ 12v | 1300 @ 14.4v
- RMS power, 4ohms :700w @ 12v
- RMS power, 2ohm Linked: 4900W x 1 14.4v
- Frequency Response: 10 Hz - 250 Hz
- Low Pass Filter: 35 Hz - 250 Hz
- Subsonic Filter: 10 Hz - 50 Hz
- Bass Boost: 0 - 9 Db
- Input sensitivity: 6V - 0.2V
- signal to Noise Ratio: 88dB <
- T.H.D @ 4ohm: less than 0.1%
- Single unit fuse rating: 200A
- Strapped fuse rating 400A
- Length (inches) Width x height (inches): 17.71x 7.32 x 2.19
- Operating voltage : 9 to 15.5 Volts
- Damping Factor: 100
CLASS: D - DIGITAL
Amplifier Dyno Sheets:
Amplifier Dyno Numbers are an Idea of power you'll be getting from the amplifier. The JP23 above rated above power the two testers; that's a plus; most music is played at about clipping, so the uncertified test numbers are significant as bass tuned setups today are played to about clipping anyways. We highly recommend 14.4v - 14.7 volts to get the most from this amplifier; 14.4 is okay, but if you're trying to JAM 14.8v. Install the JP23 and Hear the music :-)
