Product Description

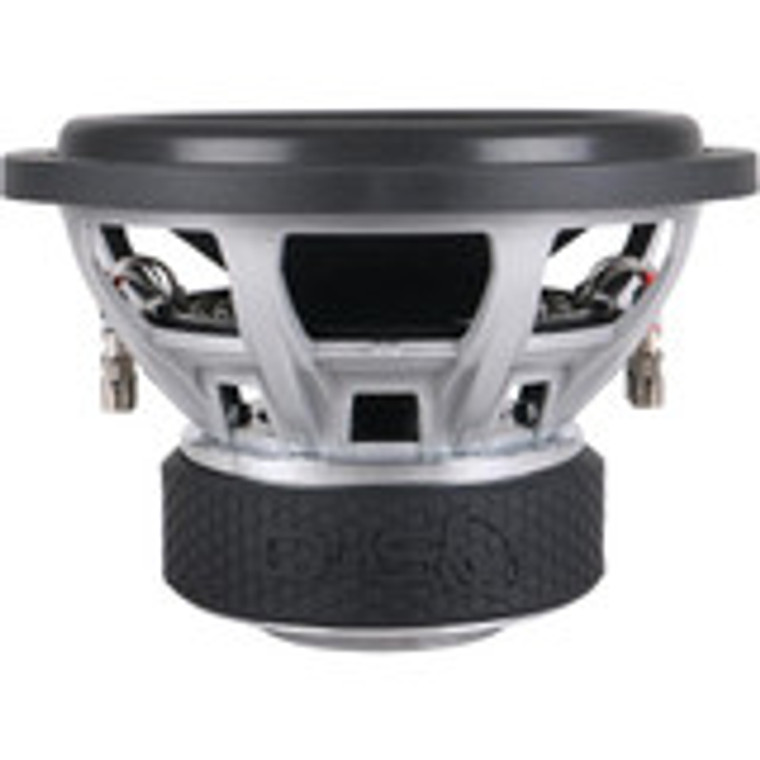

Meet the DOWN4SOUND DBz 12" Subwoofer – the ultimate budget banger delivering exceptional performance and value. With a massive 1300W RMS power, this subwoofer is perfect for car audio enthusiasts looking for big sound without the big price tag. Featuring a dual 4-ohm voice coil configuration, the DBz 12" provides versatile wiring options and powerful bass. The real premium carbon fiber dustcap adds a sleek, stylish touch while ensuring maximum durability and performance.
QUICK NOTES:
- RMS OUTPUT: 1300W RMS
- COIL SIZE: 2.75 INCH
- CUTOUT: 11.26 inches (286 mm)
- MOUNTING DEPTH: 7.68 inches (195 mm)
- NET WEIGHT: 32.8 lbs (14.9 kg)
- GROSS WEIGHT: 36.4 lbs (16.5 kg)
- XMAX : 28 mm (one-way)
- MOTOR SIZE: 7.48 in - 190 mm | 3.74 inches (Radius)
Precision Engineering: Engineered with an optimized motor strength (BL Product: 29.119 T·m) and an effective piston area (Sd) of 59.093 cm² for powerful sound output at an affordable price.
Technical Specifications for D4:
- Revc (DC Resistance): 6.050 Ohm
- Resonance Frequency (Fo): 35.012 Hz
- Total Moving Mass (Mms): 330.724 g
- Suspension Compliance (Cms): 62.480 µm/N
- Equivalent Volume (Vas): 25.010 L
- Sensitivity (SPL): 85.0 dB
- Qms (Mechanical Q): 2.322
- Qes (Electrical Q): 0.520
- Qts (Total Q): 0.425
- Mechanical Resistance (Rms): 0.763
- Sealed Enclosure: 1.0 cubic foot
- Ported Enclosure: 1.75 cubic feet
Technical Specifications for D2:
- Revc (DC Resistance): 2.960 Ohm
- Resonance Frequency (Fo): 36.949 Hz
- Total Moving Mass (Mms): 352.866 g
- Suspension Compliance (Cms): 52.580 μm/N
- Equivalent Volume (Vas): 21.047 L
- Sensitivity (SPL): 85.4 dB
- Qms (Mechanical Q): 2.166
- Qes (Electrical Q): 0.475
- Qts (Total Q): 0.390
- Voice Coil Inductance (Le): Not specified
- Mechanical Resistance (Rms): 0.776
- Sealed Enclosure: 1.0 cubic foot
- Ported Enclosure: 1.75 cubic feet
Why You Should Buy:
- High-Power Performance: This subwoofer delivers 1300W RMS of powerful, punchy bass, making it ideal for high-demand audio systems.
- Versatile Compatibility: The 4-ohm DVC setup allows for multiple wiring configurations, making it perfect for various car audio installations.
- Durable Build: Constructed with premium materials, including a carbon fiber dustcap, to withstand high sound pressure levels and ensure long-lasting performance.
- Premium Carbon Fiber Dustcap: Adds strength, rigidity, and a sleek look, enhancing both performance and aesthetics.
- Perfect for Any Setup: Whether you're upgrading your daily driver or building a show car audio system, the DBz 12" subwoofer offers the perfect blend of affordability and power.
