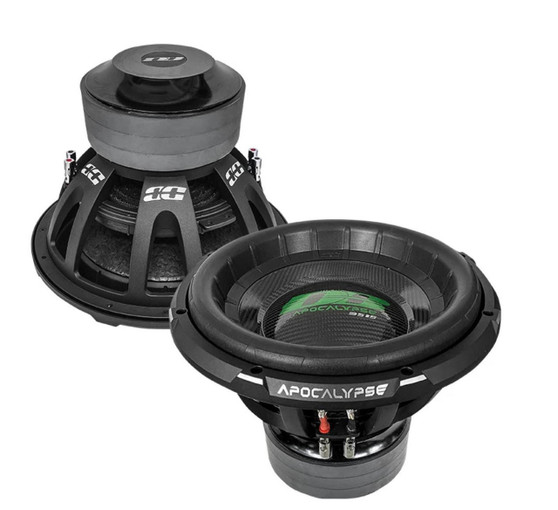

Product Description
Model | DB-3515R D2, DB-3515R D1 |
---|---|
Type | Subwoofer |
Size | 15 inch |
Voice coil size | 3.50 inch |
Cone | Carbon |
Magnet | Ferrite |
Voice coil wire | None |
Surround | Foam |
RMS Power | 3500 W |
MAX Power | 7000 W |
Frame | Alu |
Impedance | 2+2 / 1+1 Ohm |
SPL | 87.30 / 87.30 dB |
Fs | 32.00 / 32.00 Hz |
Qts | 0.38 / 0.38 |
BL | 23.90 / 23.90 |
Vas | 68.30 / 68.30 L |
Xmeh | 45.00 45.00 / 45.00 mm |
Xmax | 22.50 / 22.50 mm |
Mounting depth | 10.96 inch (278.5 mm) |
Cut-out dimension | 13.97 inch (355.0 mm) |
